CXPA-4 NEW 2013 COAXIAL

Key Features

200 Watt Max Power (LF)

20 Watt max Power (HF)

38 mm (1,5 in) voice coil, Aluminium wire (LF)

20 mm (0,8 in) voice coil, Copper wire (HF)

Weather protected membrane for out door use (LF)

Neodymium magnet

Ferrofluid inside (HF)

PA systems application

Air gap height = mm 6 Winding haight = mm 8,5

General LF HF

Nominal Diameter	4" - 100 mm	0,8" - 20 mm
Nominal Impendance	8 Ohm	4 Ohm
Nominal Rdc	5,3 Ohm	3,4 Ohm 0,53 Ohm
Power handling (AES) (*)	100 Watt	10 Watt
Max Power	200 Watt	20 Watt
Voice Coil Diameter	38 mm	20 mm 1,5/0,8 in
S.P.L. (1w, 1m)	89,2 Hz	95 Hz 1,5 dB
Nominal Fs	195 Hz	1450 Hz 20/160 Hz
Flux Density	0,95 T	1,3 T 0,07 T
Crossover Frequency		3000 Hz, 12 dB/oct
Frequency Range	150-2000 Hz	2000-20000 Hz

Life Test (*)
Box Volume	3 liters
Input Signal	Pink noise
Band Pass Filter	150-5000Hz, 12dB/oct
V on Speaker	28
Test duration	23 hours

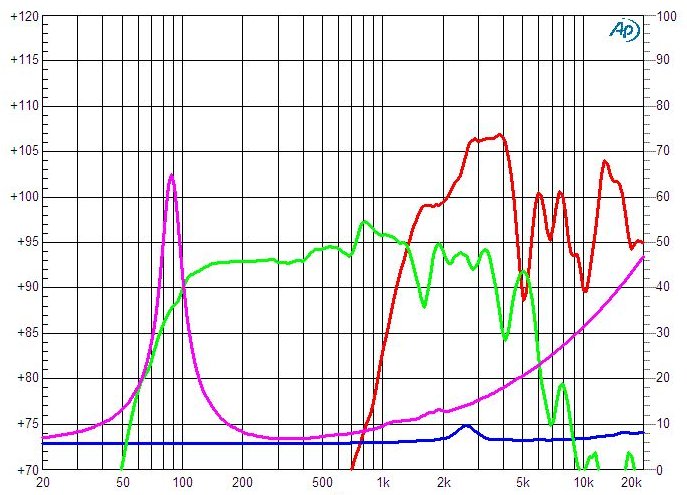

Diagram

Frequency Response	Infinite baffle 2,83 V - 1 m
Impendance	(Iac=10mA)

Mechanical & Shipping Informations

Net weight	0,81 Kg
Overall Diameter	101 mm
Overall Depth	54 mm
Baffle Cut Diameter	91 mm
Mounting holes number	4
Mounting holes diameter	110 mm
Mounting bolt diameter	5 mm

Materials

Frame Material	Steel
Voice Coil Former Material	Fiber glass(LF) Kapton (HF)
Voice Coil Wire	Copper
Cone Material	Paper (LF) Polyester (HF)
Cone Shape	Exponential (LF) Dome (HF)
Surround Material	Fabric(LF) Polyester(HF)
Surround Shape	Half roll
Suspension Material	Fabric
Magnet Type	Nedymium
Magnet Weight	11x9,10 g

Thiele-small parameters

Qms	4,90
Qes	0,86
Qts	0,73
Fs	198 Hz
Re	5,26 Ohm
Mms	6,15 g
Cms	0,11 mm/N
Bl	6,85 T*m
Sd	51,53 cm2
Vas	0,39 liter
u0	0,34 %
XMax	3,25 mm
Le	0,38 mH
Rms	1,56 Kg/s
Efficiency Bandwidth	230,86
