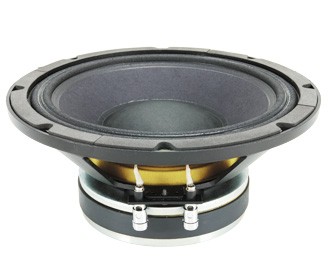

- 10.75 W WOOFER
Key Features
800 Watt Max Power
75 mm (3 in) voice coil, copper wire
Ferrite magnet assembly
Air gap height = mm 10 Winding height = mm 17
 General
|
| Nominal Diameter | 10" - 250 mm | |
|---|---|---|
| Nominal Impendance | 8 Ohm | |
| Nominal Rdc | 5,4 Ohm | ±0,4 Ohm |
| Power handling (AES) (*) | 400 Watt | |
| Max Power | 800 Watt | |
| Voice Coil Diameter | 75 mm | 3,00 in |
| S.P.L. (1w, 1m) | 96 dB | ±1,5 dB |
| Nominal Fs | 58 Hz | ±6 Hz |
| Flux Density | 1,05 T | ±0,08 T |
| Frequency Range | 55-3000 Hz |
| Life Test (*) | ||
| Box Volume | 40 liters | |
|---|---|---|
| Input Signal | Pink noise | |
| Band Pass Filter | 50-500 Hz,12dB/oc | |
| V on Speaker | 56 V | |
| Test duration | 2 hours | |
Diagram

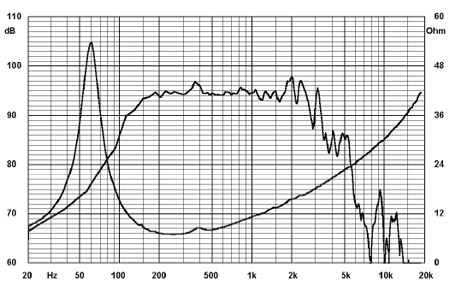

| Frequency Response | Reflex Box 20 dmc - 2,83 V - 1m | |
|---|---|---|
| Impendance | (lac=10m A) |
Mechanical data
| Weight | 5 kg | |
|---|---|---|
| Overall Diameter | 266 mm | |
| Overall Depth | 125 mm | |
| Baffle Cut Diameter | 235 mm | |
| Mounting holes number | 8 | |
| Mounting holes diameter | 5 mm | |
| Mounting bolt diameter | 253 mm |
Materials
| Frame Material | Aluminium | |
|---|---|---|
| Voice Coil Former | Aluminium | |
| Voice Coil Wire | Copper | |
| Cone Material | Paper | |
| Cone Shape | Exponential | |
| Surround Material | Doped Nomex ® fabric | |
| Surround Shape | Two rolls | |
| Suspension Material | Doped Nomex ® fabric | |
| Magnet Type | Ferrite | |
| Magnet Weight | 1425 g |
Thiele-small parameters
| Qms | 3,2 | |
|---|---|---|
| Qes | 0,33 | |
| Qts | 0,30 | |
| Fs | 57,25 Hz | |
| Re | 5,21 Ohm | |
| Mms | 44,93 g | |
| Cms | 0,000172 m/N | |
| Bl | 15,86 Wb/m | |
| Sd | 0,035299 m2 | |
| Vas | 0,03067 m3 | |
| u0 | 1,65 % | |
| XMax | 3,5 mm | |
| Le | 0,94 mH |
