CIARE ITALIAN SPEAKERS - PRO AUDIO B2B: CD - 380 T Compression Driver

CD - 380 T COMPRESSION DRIVER

Key Features

90 Watt Max Power
1'' Horn throat diameter
Flat Titanium diaphragm
38 mm (1.50 in) voice coil, aluminium wire
16 Ohm available

General

Throat Diameter	1"-25,4 mm
Nominal Impendance	8
Voice coil resistance	5,8 Ohm	0,4 Ohm
Minimum Impedance	7,2 Ohm	0,7 Ohm
Power handling (AES) (*)	30 Watt
Max Power	60 Watt
Voice Coil Diameter	38 mm	1,50 in
S.P.L. (1w, 1m)	107 dB	1,5 dB
Nominal Fs	1600 Hz	200 Hz
Flux Density	1,5 T	0,08 T
Crossover Frequency	2 kHz	12 dB/oct
Frequency Range	1,2-18 kHz
Sinusoidal Test Voltage	3 V RMS

Life Test (*)
Horn	PR 312
Input Signal	Pink noise
Band Pass Filter	2-20 kHz, 12dB/oct
V on Speaker	15,5 V RMS
Test duration	2 hour

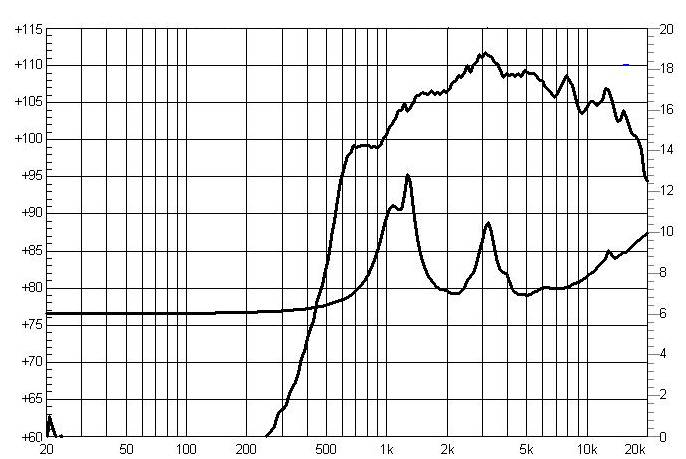

Diagram

Frequency Response	with horn PR 312-1m-2.83V
Impendance	(Iac=10mA)

Mechanical data

Weight	0,62 Kg
Overall Diameter	102 mm
Overall Depth	54 mm
Mounting holes number	2 180°
Mounting holes diameter	M 5 screw
Mounting bolt diameter	76 mm

Materials

Pot Material	Plastic
Voice Coil Former	Kapton
Voice Coil Wire	Aluminium
Membrane Material	Titanium
Membrane Shape	Flat
Surround Material	Titanium
Surround Shape	Flat
Magnet Type	Neodymium
Magnet Weight	60 g
