1.38 TW HORN TWEETER

Key Features

40 Watt Max Power
38 mm (1,5 in) voice coil, copper wire
Aluminium diaphragm

General

Throat Diameter	1,5" - 38 mm
Nominal Impendance	8 Ohm
Voice coil resistance	5,8 Ohm	±0,4 Ohm
Minimum Impedance	4,5 Ohm	±0,7 Ohm
Power handling (AES) (*)	20 Watt
Max Power	40 Watt
Voice Coil Diameter	38 mm	1,50 dB
S.P.L. (1w, 1m)	105 dB	±1,5 dB
Nominal Fs	2000 Hz	±100 Hz
Flux Density	1,5 T	±1 T
Crossover Frequency	2 kHz	12 dB/oct
Frequency Range	2,5-20 kHz

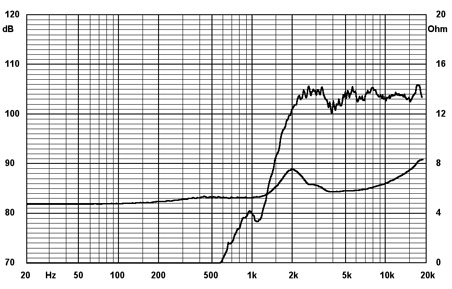

Diagram

Frequency Response	free air - 1m - 2,83 V
Impendance	(lac=10mA)

Mechanical data

Weight	2 kg
Overall Diameter	150 mm
Overall Depth	63 mm
Mounting holes number	4
Mounting holes diameter	5 mm
Mounting bolt diameter	135 mm

Materials

Flange	Plastic
Voice Coil Former	Kapton
Voice Coil Wire	Copper
Membrane Material	Aluminium
Membrane Shape	Waves
Suspension Material	Aluminium
Suspension Shape	Flat
Magnet Type	Ferrite
Magnet Weight	540 g
