1.38 TW2 HORN TWEETER

Key Features

40 Watt Max Power
38 mm (1,5 in) voice coil, aluminium wire
Doped fabric diaphragm

General

Throat Diameter	1,5" - 38 mm
Nominal Impendance	8 Ohm
Voice coil resistance	5,8 Ohm	±0,4 Ohm
Minimum Impedance	5,5 Ohm	±0,7 Ohm
Power handling (AES) (*)	20 Watt
Max Power	40 Watt
Voice Coil Diameter	38 mm	1,50 dB
S.P.L. (1w, 1m)	98 dB	±1,5 dB
Nominal Fs	1000 Hz	±100 Hz
Flux Density	1 T	±0,08 T
Crossover Frequency	1 kHz	12 dB/oct
Frequency Range	1-18 kHz

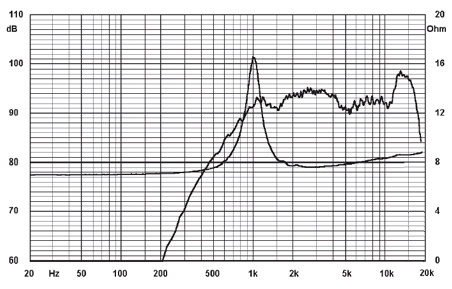

Diagram

Frequency Response	free air - 1m - 2,83 V
Impendance	(lac=10mA)

Mechanical data

Weight	1,1 kg
Overall Diameter	114 mm
Overall Depth	70 mm
Mounting holes number	3
Mounting holes diameter	5 mm
Mounting bolt diameter	103 mm

Materials

Pot Material/Flange	Plastic
Voice Coil Former	Kapton
Voice Coil Wire	Aluminium
Membrane Material	Doped Fabric
Membrane Shape	Dome
Suspension Material	Doped Fabric
Suspension Shape	Flat
Magnet Type	Ferrite
Magnet Weight	335 g
