CIARE ITALIAN SPEAKERS - PRO AUDIO B2B: 1.26 TW Horn tweeter

1.26 TW HORN TWEETER

Key Features

200 Watt Max Power
26 mm (1 in) voice coil, copper wire
Aluminium diaphram

General

Throat Diameter	1'' - 25 mm
Nominal Impendance	8 Ohm
Voice coil resistance	5,8 Ohm	±0,4 Ohm
Minimum Impedance	6,5 Ohm	±0,7 Ohm
Power handling (AES) (*)	20 Watt
Max Power	40 Watt
Voice Coil Diameter	26 mm	1 dB
S.P.L. (1w, 1m)	105 dB	±1,5 dB
Nominal Fs	2200 Hz	±100 Hz
Flux Density	1,6 T	±0,1 T
Crossover Frequency	2 kHz	12 dB/oct
Frequency Range	5-20 kHz

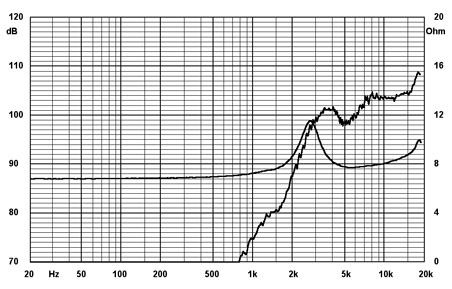

Diagram

Frequency Response	Baffle 30x48 cm - 1m - 2,83 V
Impendance	(lac=10m A)

Mechanical data

Weight	1,15 kg
Overall Diameter	130 mm
Overall Depth	44 mm
Mounting holes number	4
Mounting holes diameter	5 mm
Mounting bolt diameter	116 mm

Materials

Flange	Aluminium
Voice Coil Former	Polyammide
Voice Coil Wire	Copper
Membrane Material	Aluminium
Membrane Shape	Waves
Suspension Material	Aluminium
Suspension Shape	Flat
Magnet Type	Ferrite
Magnet Weight	355 g
